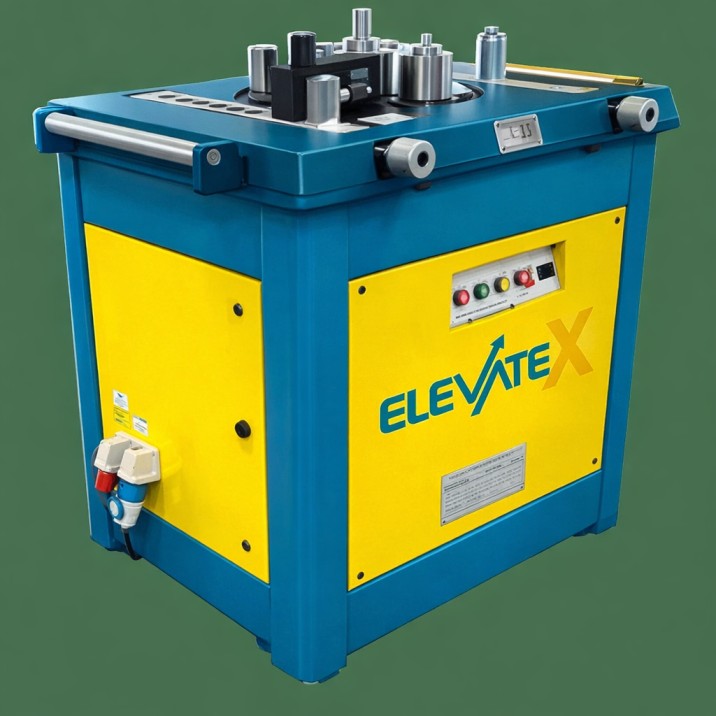

ElevateX Edge Evolution Series Bar Bending Machines are engineered in accordance with European safety standards, delivering high torque, superior reliability, and long-lasting performance for demanding construction environments.
These machines are designed with advanced manufacturing technologies and premium components to minimize breakdowns, reduce maintenance, and maximize productivity on-site.
Advanced Drive Technology
-
Equipped with a customized European-standard planetary gearbox directly coupled with the motor.
-
Completely eliminates the use of V-belts, thereby reducing breakdowns and power losses.
-
Planetary gearbox design delivers higher torque, enabling faster bending cycles and increased productivity.
Precision Manufacturing & Robust Construction
-
Sheet metal body parts are manufactured using CNC punching and CNC bending machines for high accuracy and consistency.
-
Machine components are produced in-house using advanced CNC laser cutting, CNC turning, and VMC machining, ensuring strict quality control.
-
Heavy-duty construction ensures long operational life even under continuous load.
Corrosion Protection & Superior Finish
-
All pins, bushes, and rollers are electroplated, offering excellent protection against rust and corrosion.
-
Provides a premium finish and improves overall machine durability in harsh site conditions.
Enhanced Safety & Electrical Reliability
-
Specially designed electrical braking circuit safely stops the motor without the need for a brake motor.
-
Eliminates frequent brake liner replacement, reducing maintenance costs and downtime.
-
Fitted with Schneider make electrical contactors and Finder (Italy) make timers, ensuring high electrical reliability and fewer breakdowns.
Long-Life Gear System
-
Supplied with premium synthetic oil for the Italian gearbox, reducing the frequency of oil changes.
-
Enhances the life of internal gear components and ensures smooth, consistent performance.
Bar Bending Machine Specifications
| Model | Max Bar Strength | Max Bar Diameter | Motor HP | Bend Wheel Dia. (mm) | Dimensions (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| PBM42 | 75 kg/mm² | Ø25 mm | 5 HP | 350 | 860 × 800 × 1040 (H) | 305 |
| PBM52 | 75 kg/mm² | Ø32 mm | 5 HP | 425 | 840 × 1005 × 1070 (H) | 370 |
| PBMS5 | 75 kg/mm² | Ø42 mm | 5 HP | 500 | 845 × 1025 × 1070 (H) | 405 |
Why Choose ElevateX Edge Evolution Series?
✔ European safety-compliant design
✔ High-torque planetary gearbox (no V-belts)
✔ Low maintenance & reduced breakdowns
✔ Precision CNC-manufactured components
✔ Ideal for heavy-duty construction projects
